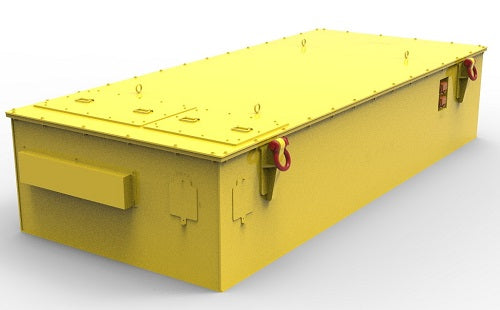

537.6V510Ah Lithium-ion Battery
537.6V510Ah Lithium-ion Battery
Regular price
$24,700.00 USD
Regular price
Sale price
$24,700.00 USD
Application: Lithium battery system for Engineering machinery, Construction machinery, Electric Vehicles, Electric boats, etc.
The nominal voltage/capacity of the battery system is 537.6V/510Ah
Total power: 274.2Kwh.
It consists of a 56pcs 10P3S battery module, which makes it be 10P168S.
The battery system is composed of a High-voltage distribution box, battery modules, BMS, heating system, high/low voltage harness etc.
Adopt a natural cooling system between the battery module for heat dissipation.
The battery system is equipped with engineering equipment, in order to ensure the structural strength of the box, the upper and lower casing using Q235 thick steel plate weld-forming.
The IP grade of the battery casing meets the requirement of IP67.
Dimension: 3350×1420×710mm
Weight: ≈3500kg
Max. Continuous charging rate: 0.5C
Max. Continuous discharge rate:1C
The nominal voltage/capacity of the battery system is 537.6V/510Ah
Total power: 274.2Kwh.
It consists of a 56pcs 10P3S battery module, which makes it be 10P168S.
The battery system is composed of a High-voltage distribution box, battery modules, BMS, heating system, high/low voltage harness etc.
Adopt a natural cooling system between the battery module for heat dissipation.
The battery system is equipped with engineering equipment, in order to ensure the structural strength of the box, the upper and lower casing using Q235 thick steel plate weld-forming.
The IP grade of the battery casing meets the requirement of IP67.
Dimension: 3350×1420×710mm
Weight: ≈3500kg
Max. Continuous charging rate: 0.5C
Max. Continuous discharge rate:1C
Materials and care
Materials and care
Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
