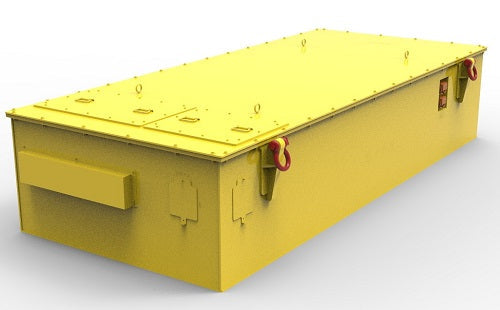

566.5V420Ah Lithium-ionBbattery
566.5V420Ah Lithium-ionBbattery
Regular price
$19,200.00 USD
Regular price
Sale price
$19,200.00 USD
Application: Lithium battery system for Engineering machinery, Construction machinery, Electric Vehicles, Electric boats, etc.
The nominal voltage/capacity of the battery system is 566.4V/420Ah
Total power: 238Kwh.
It consists of a 59pcs 4P3S battery module, which makes it be 4P177S.
The battery system is composed of a High-voltage distribution box, battery modules, BMS, heating system, high/low voltage harness, etc.
Adopt a natural cooling system between the battery module for heat dissipation.
The battery system is equipped with engineering equipment, in order to ensure the structural strength of the box, the upper and lower casing using Q235 thick steel plate weld-forming.
The IP grade of the battery casing meets the requirement of IP67.
Dimension: 2800×1420×710mm
Weight: ≈3500kg
Max. Continuous charging rate: 0.5C
Max. Continuous discharge rate:0.5C
The nominal voltage/capacity of the battery system is 566.4V/420Ah
Total power: 238Kwh.
It consists of a 59pcs 4P3S battery module, which makes it be 4P177S.
The battery system is composed of a High-voltage distribution box, battery modules, BMS, heating system, high/low voltage harness, etc.
Adopt a natural cooling system between the battery module for heat dissipation.
The battery system is equipped with engineering equipment, in order to ensure the structural strength of the box, the upper and lower casing using Q235 thick steel plate weld-forming.
The IP grade of the battery casing meets the requirement of IP67.
Dimension: 2800×1420×710mm
Weight: ≈3500kg
Max. Continuous charging rate: 0.5C
Max. Continuous discharge rate:0.5C
