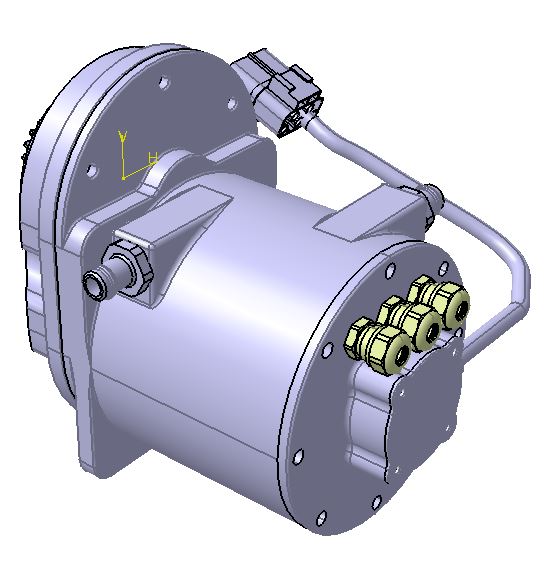

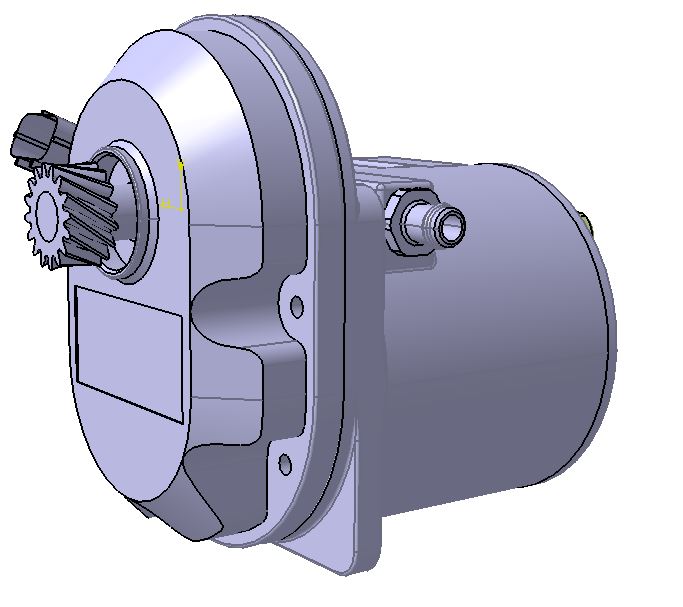

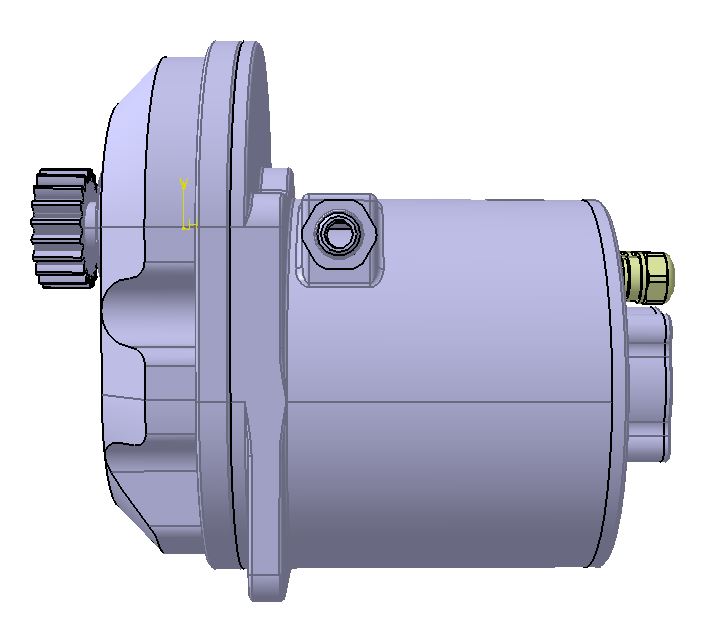

Motor + Gear Box power unit liquid cooling Motor: 72V – nominal 3.2 KW, 6.5 KW peak, nominal torque 11 NM， peak torque 21NM, nominal 3500RPM, peak 7000 RPM; Water cooling PMS, Motor housing and side cover new toolings; Gear Box : reduction ration 2.5:1; Gear Box housing new toolings

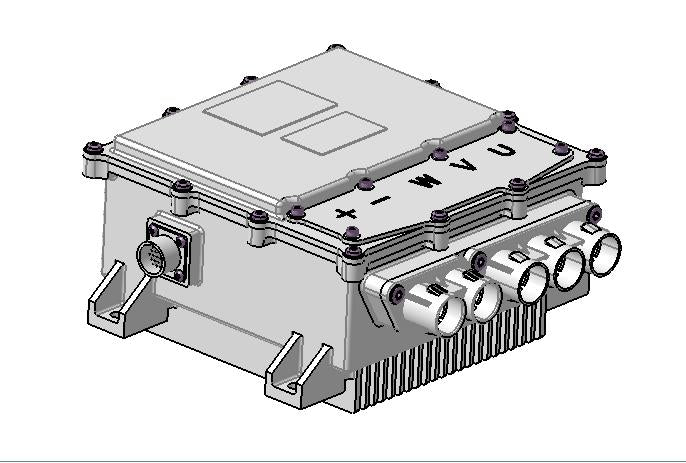

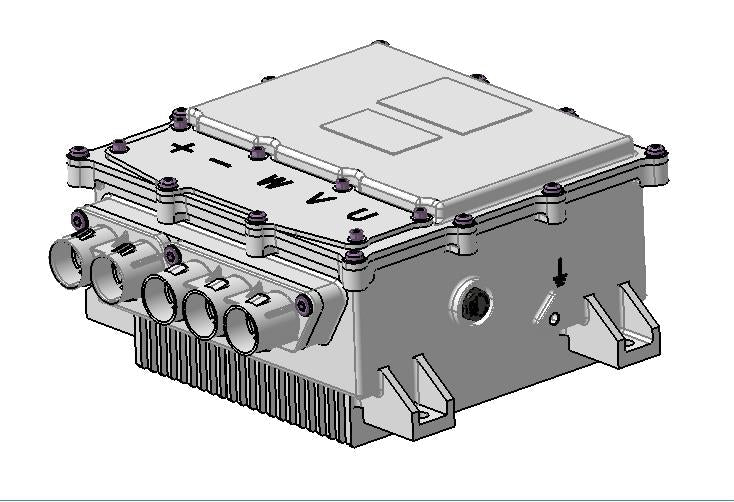

Motor Control Unit Support Motor peak power ：6-12kW Support Motor nominal power：3-5 kW MCU peak current (Arms) 1min：90-130 MCU nominal current (Arms) ：40-68 MCU cooling: Natural Cooling MCU nominal voltage：72VDC MCU voltage range：36-80V MCU dimension: 264 X 259 X 130mm
Materials and care
Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
