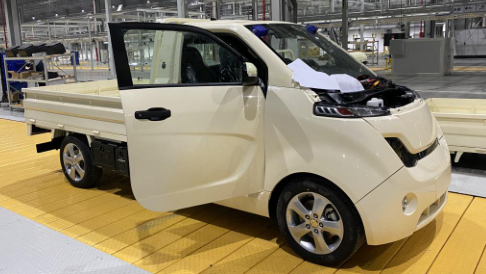

Light Pure Eelctric Trucks Drive System (2AMT)

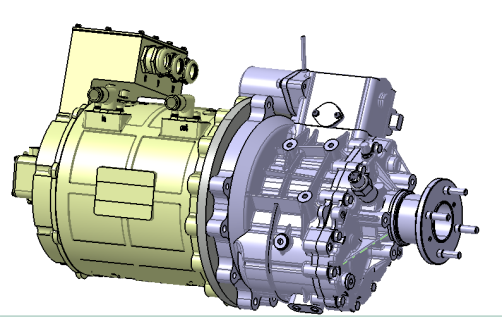

Electirc dirve system (drive motor+2AMT gearbox)
◆ Drive motor which peak power is 120-130KW
◆ 2AMT gearbox connects drive rear bridage
Drive motor：PMSM（Refer Digital-Analog）
Power system parameter:
Voltage range: 500-540 V
Nominal power:          70-75kw
Peak power:             120-130kw
Nominal torque: 150-200 Nm
Nominal speed: 2400rpm
Peak torque:  340-400Nm
Peak speed:  6500rpm
Gearbox：2AMT gearbox （Refer Digital-Analog）
2AMT gearbox parameter：
Max.input speed：7000rpm
Speed ratio：2.83 and 1(not include main reduction)
Max.input torque: 380Nm
