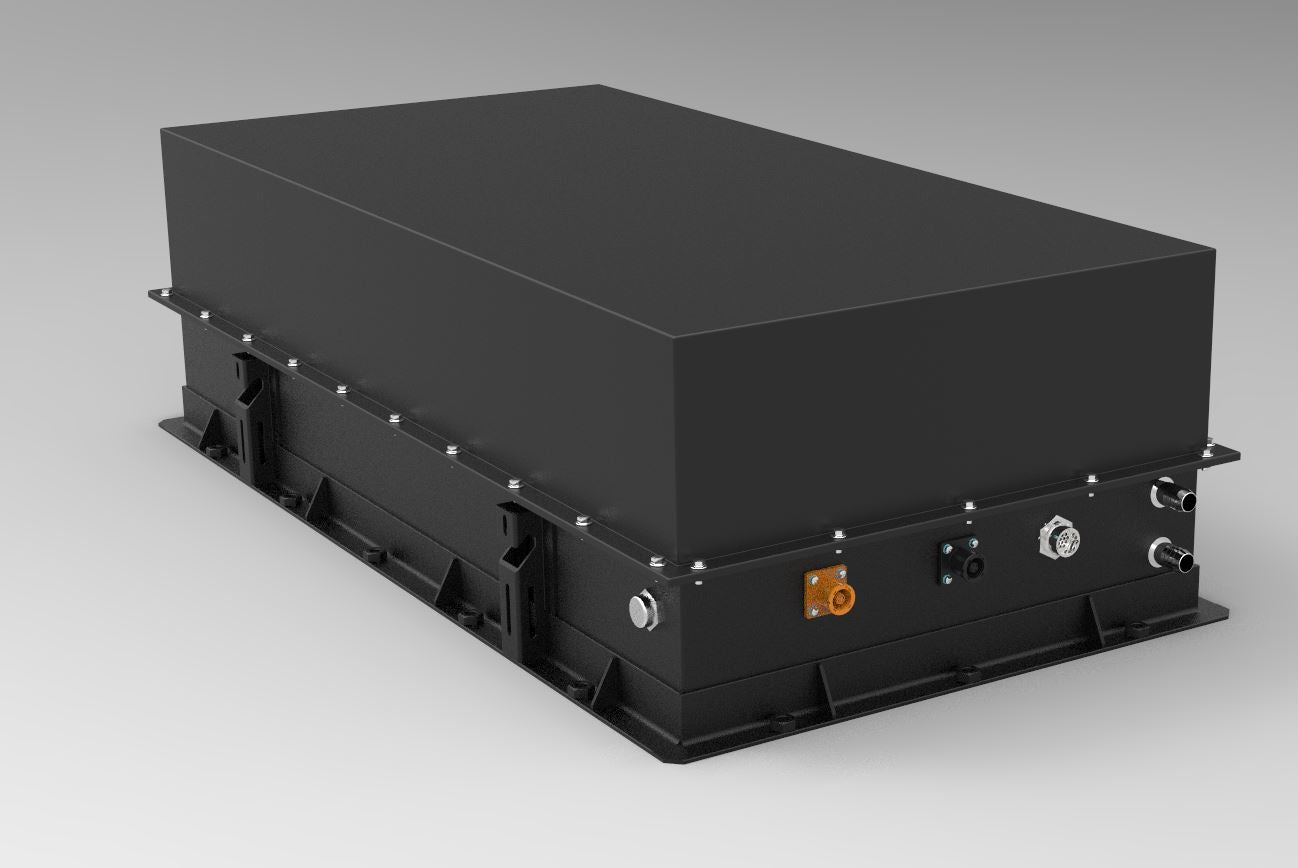

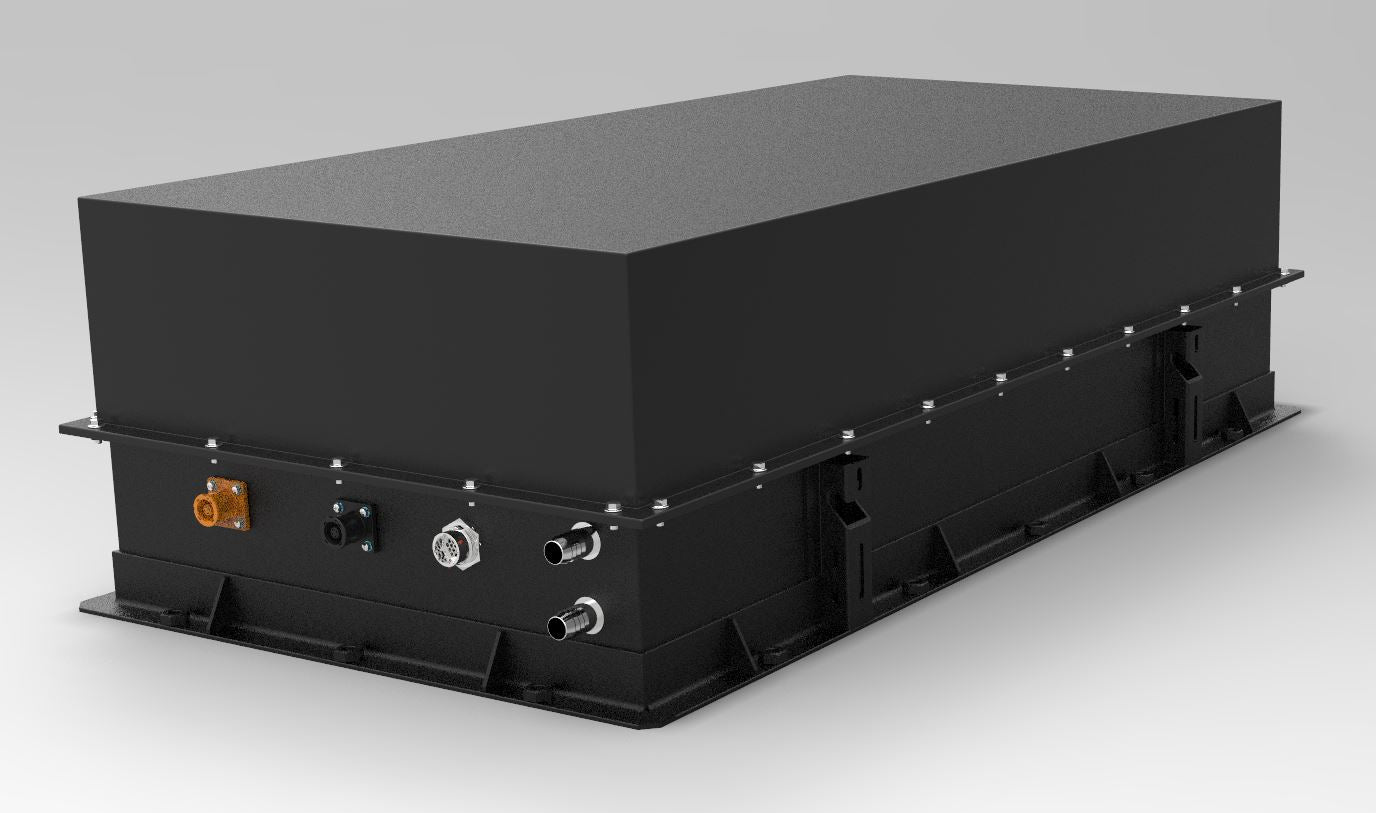

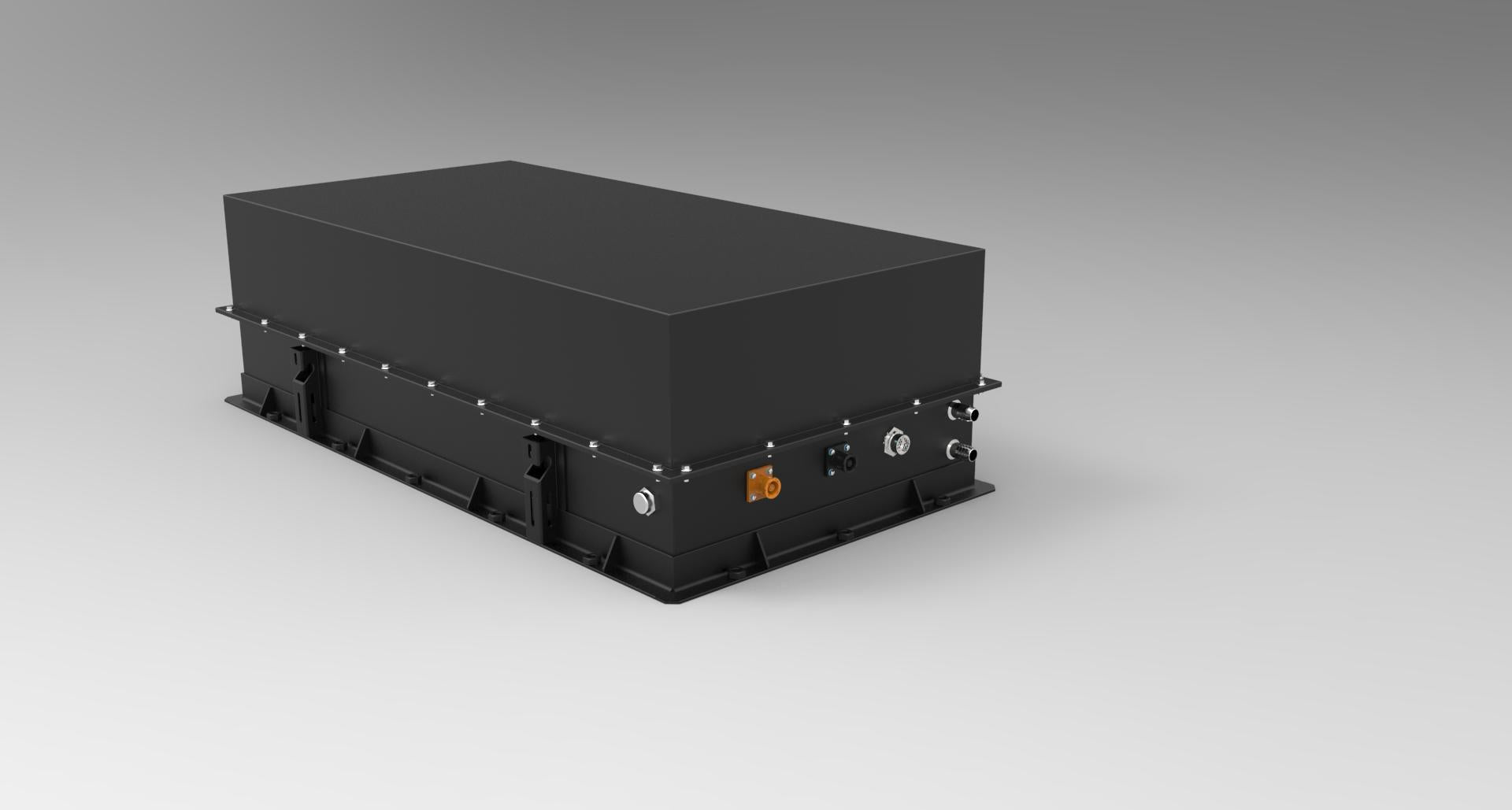

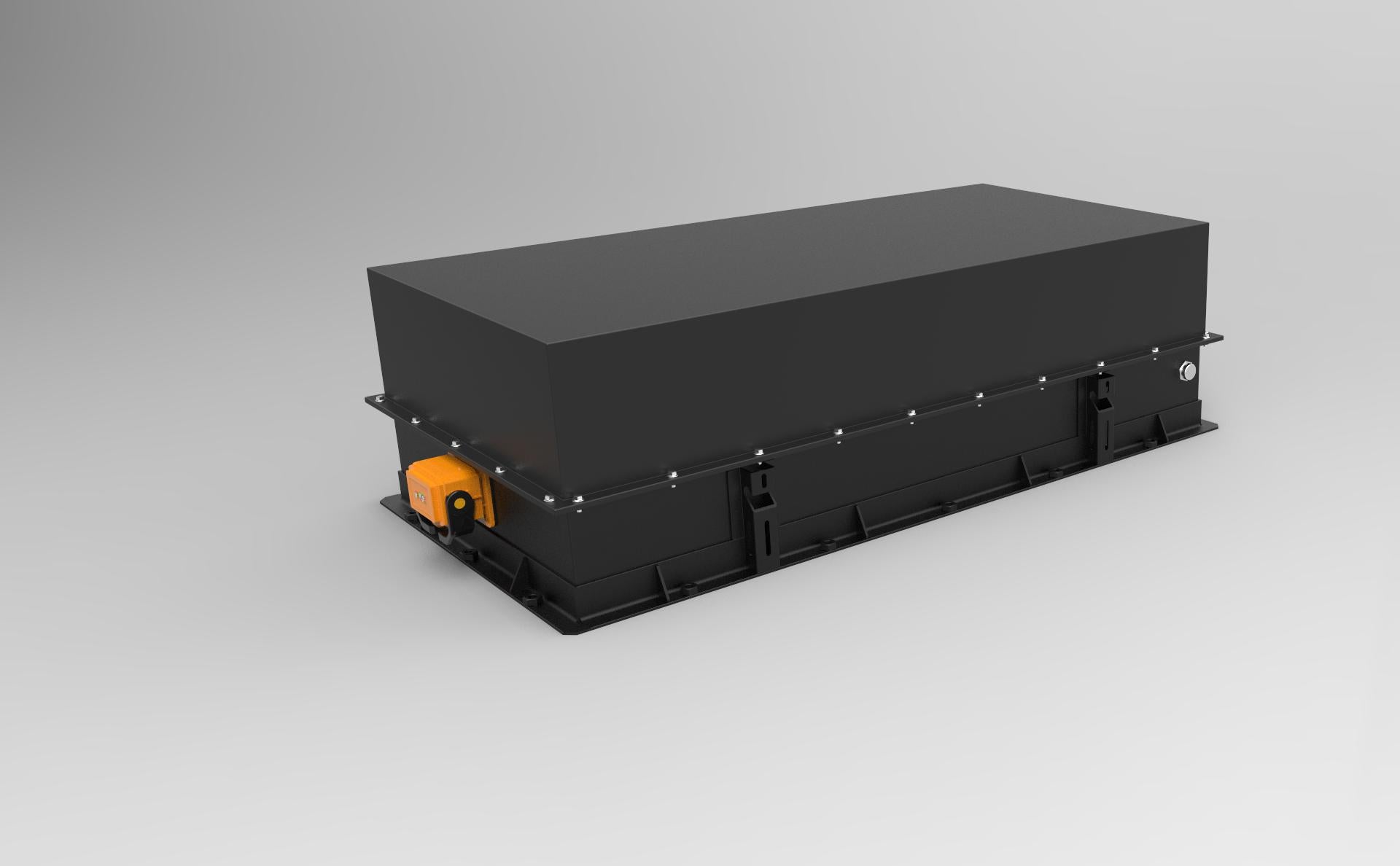

Lithium Battery System - 302.4V51Ah

302.4V51Ah Lithium Battery System for EV

Application: Lithium battery system for Electric vehicles, Electric boats, Modified vehicles, Electric trucks. etc...

The nominal voltage/capacity of the battery system is 302.4V/51Ah

Total power: 15.42Kwh.

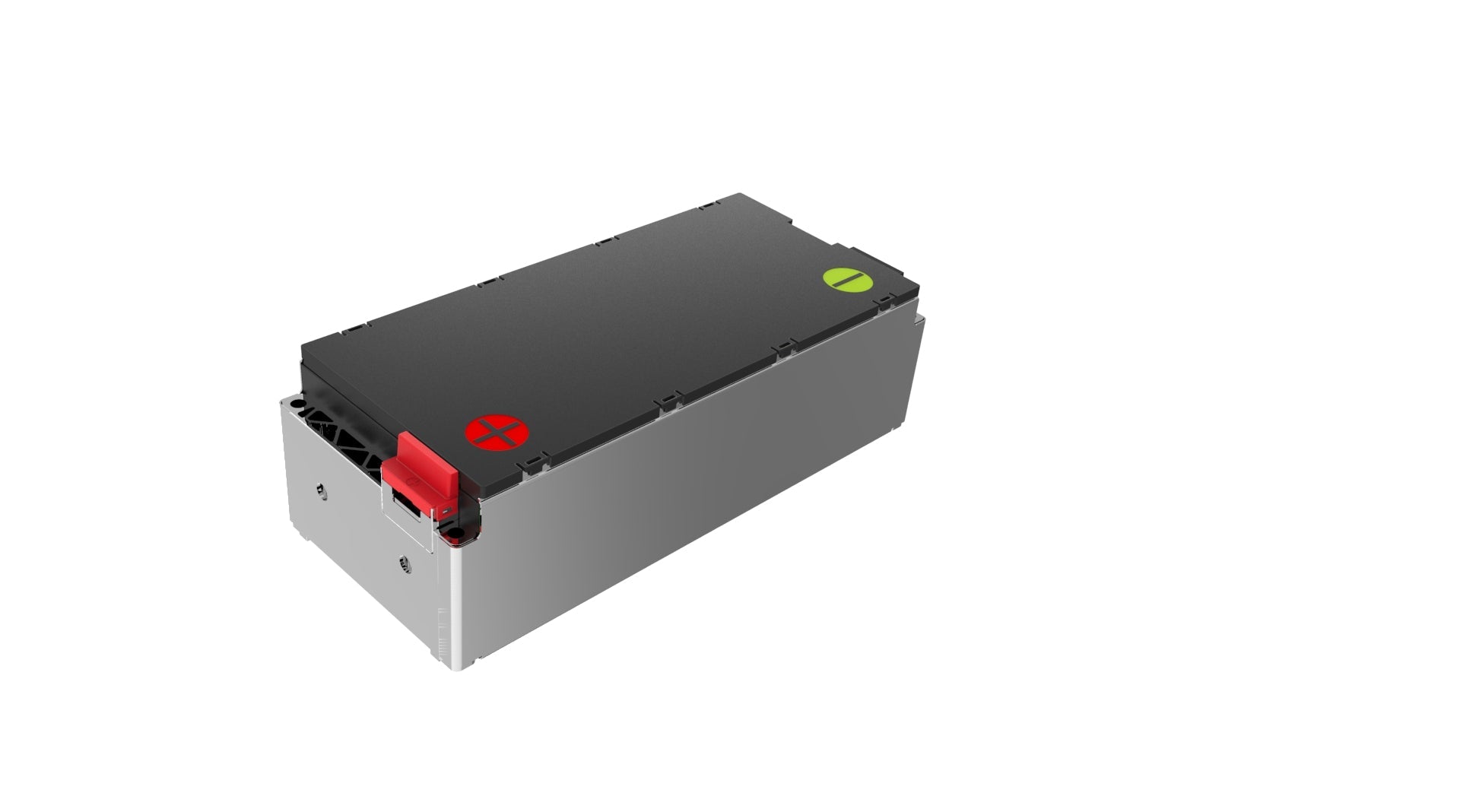

It consists of 7pcs 1P12S medium battery module, makes it be 1P84S.

The battery system dimension is 980*510*290mm

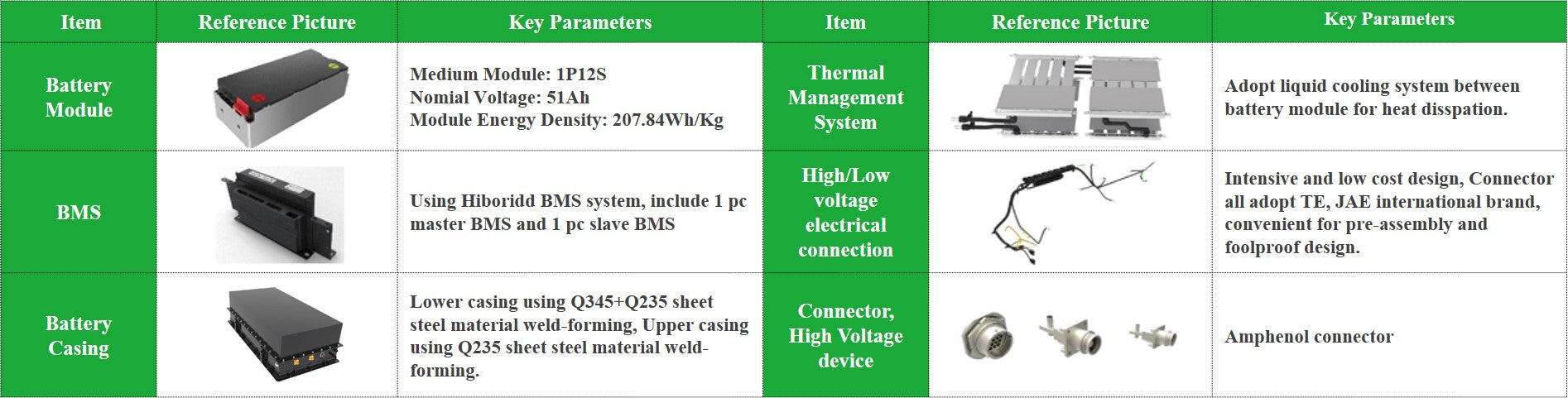

Composed of battery modules, BMS, liquid cooling system, etc.

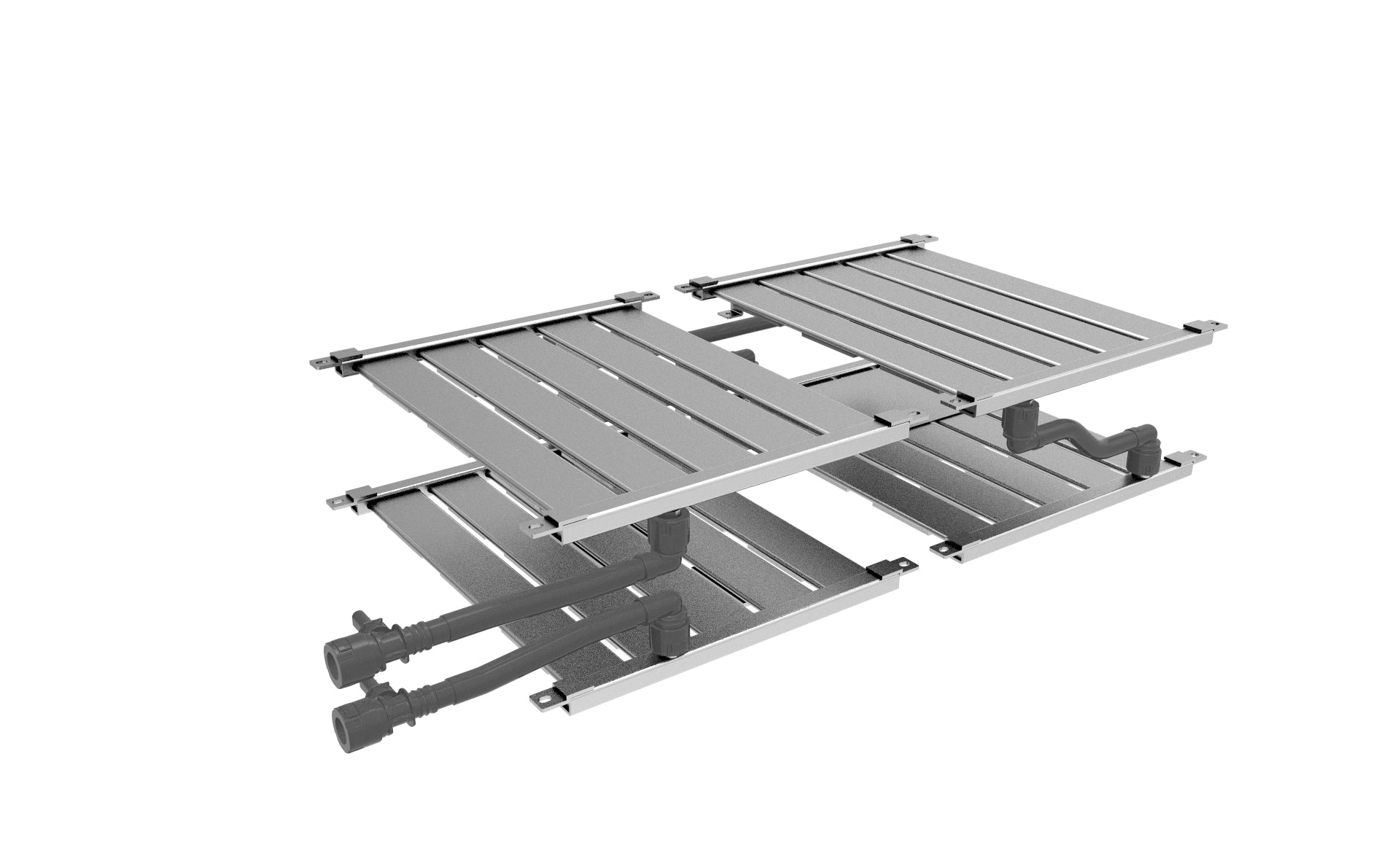

Adopt a liquid cooling system between the battery module for heat dissipation.

Lower casing using Q345+Q235 sheet steel material weld-forming, Upper casing using Q235 sheet steel material weld-forming.

The IP grade of the battery casing meets the requirement of IP67.
