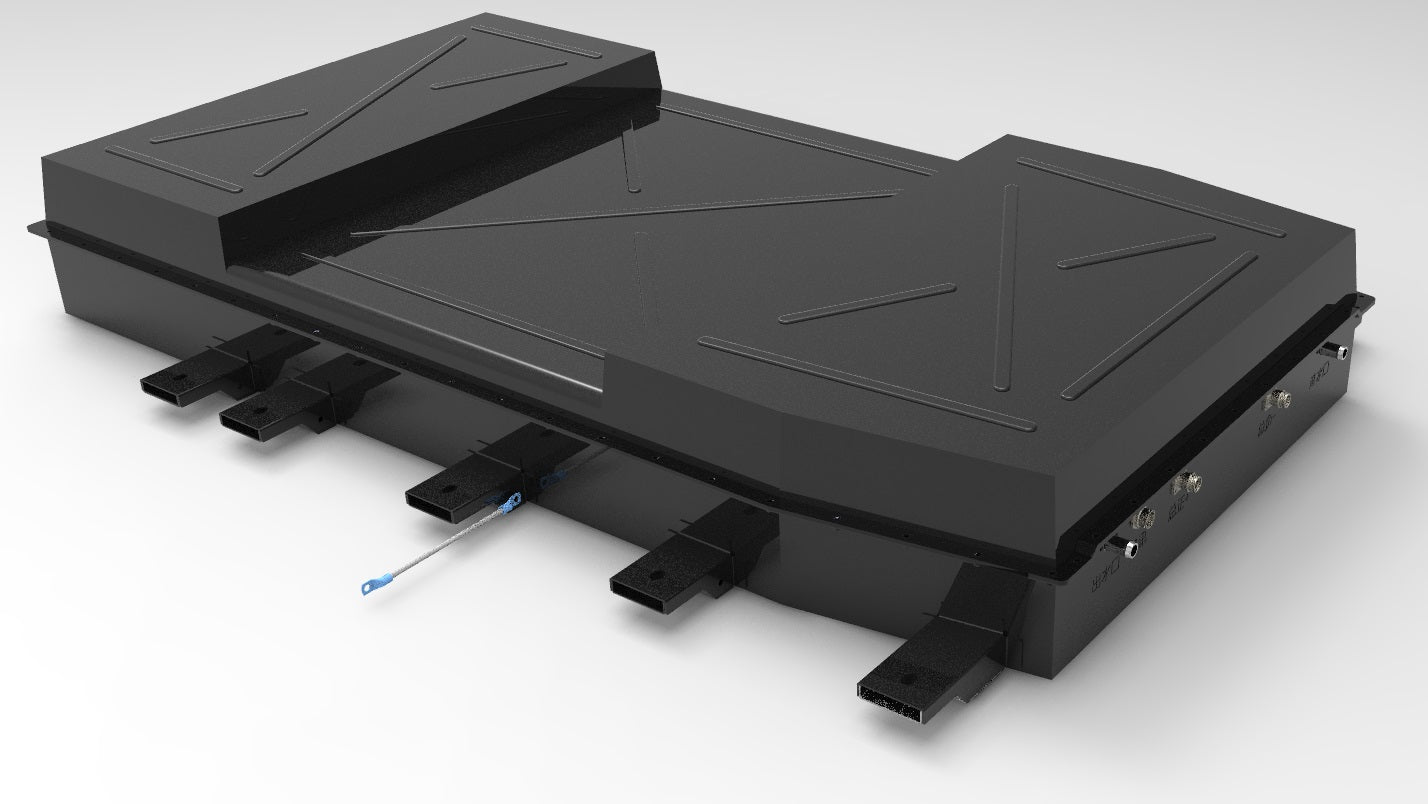

Lithium Battery System - 403.2V144Ah
Lithium Battery System - 403.2V144Ah
Regular price
$3,420.00 USD
Regular price
Sale price
$3,420.00 USD
403.2V144Ah Lithium Battery System for EV
The nominal voltage/capacity of the battery system is 403.2V/144Ah, Total power: 58.06Kwh. It consists of a 28pcs 3P4S medium battery module, makes it be 3P112S.
The battery system dimension is: 1764*960*252mm, is composed of battery modules, BMS, liquid cooling system, etc.
Adopt a liquid cooling system between the battery module for heat dissipation.
Lower casing using Q345+Q235 sheet steel material weld-forming, Upper casing using Q235 sheet steel material weld-forming.
The IP grade of the battery casing meets the requirement of IP67.
Materials and care
Materials and care
Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
