It can be used for Electric vehicles, Low-Speed vehicles, Electric tricycles, Electric Club cars...

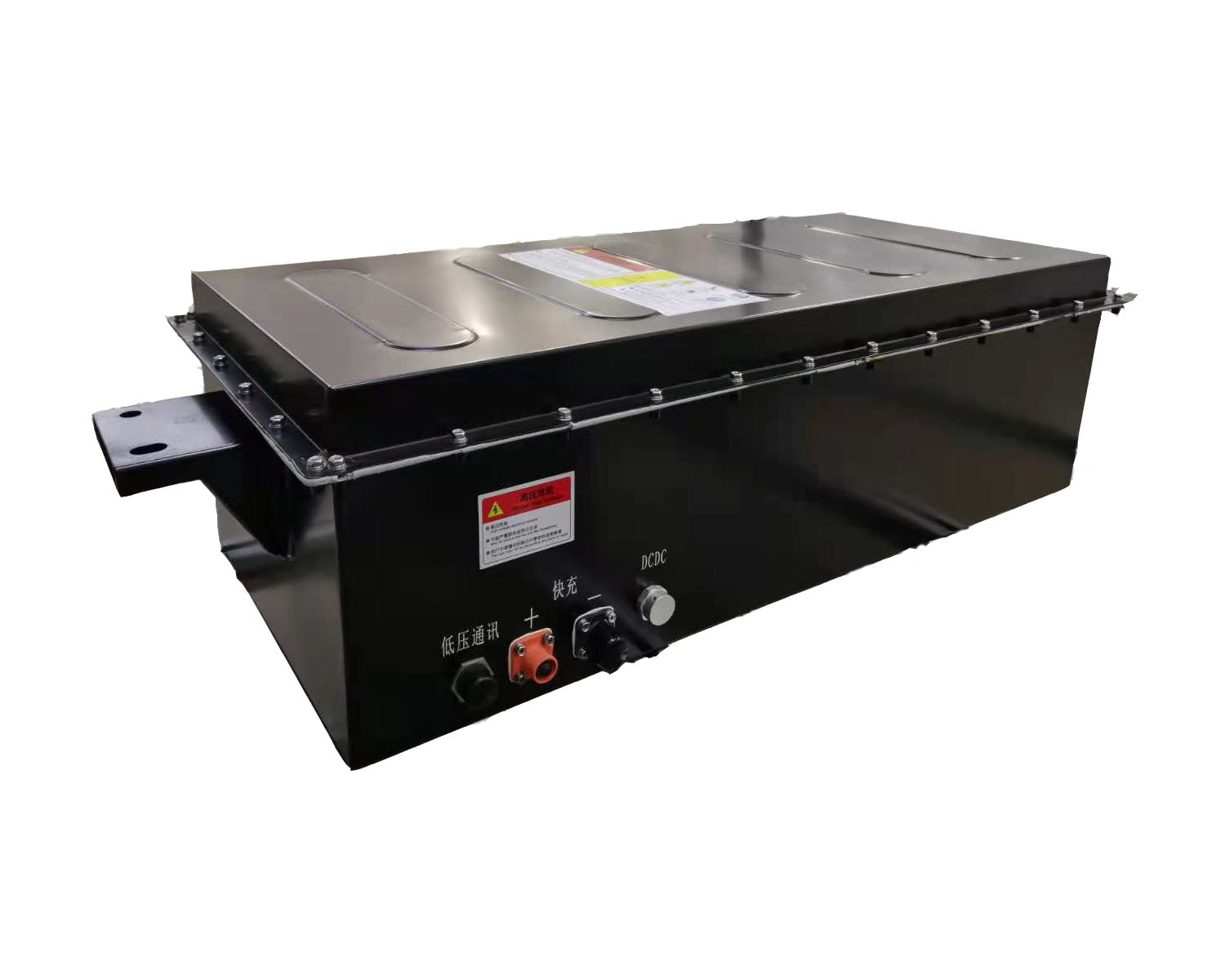

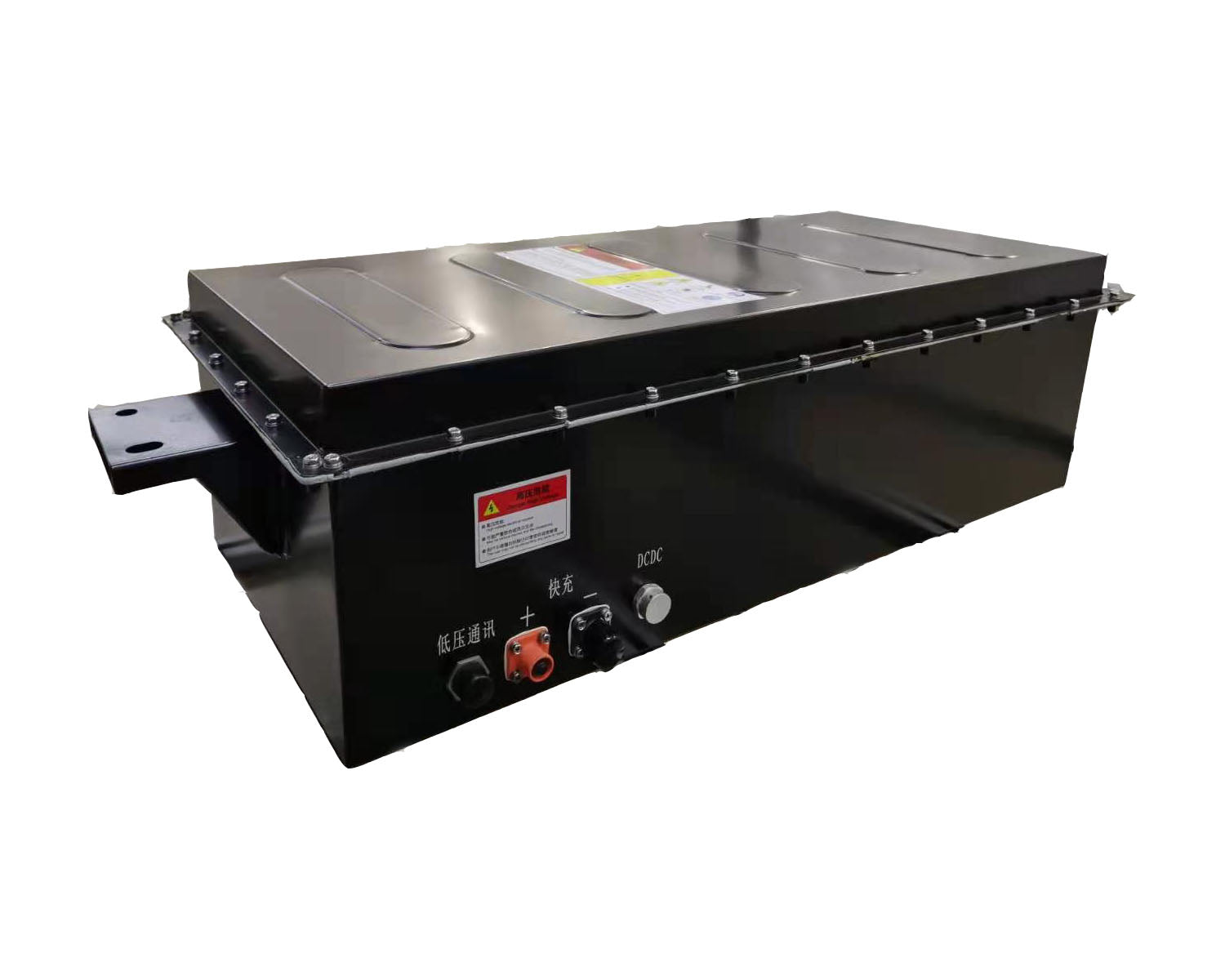

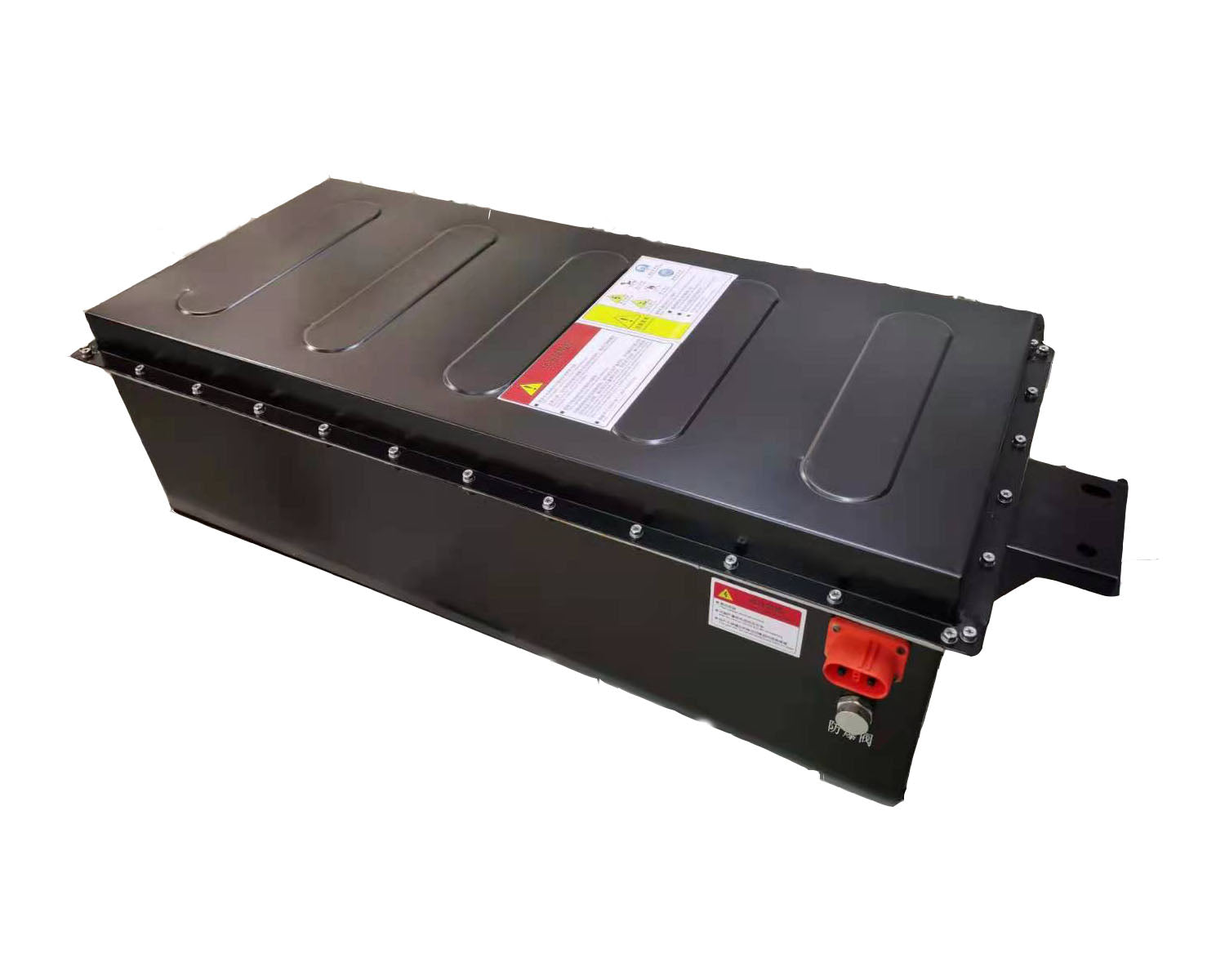

The nominal voltage/capacity of the battery system is 70.4V/113Ah.
Total power: 7.96Kwh.

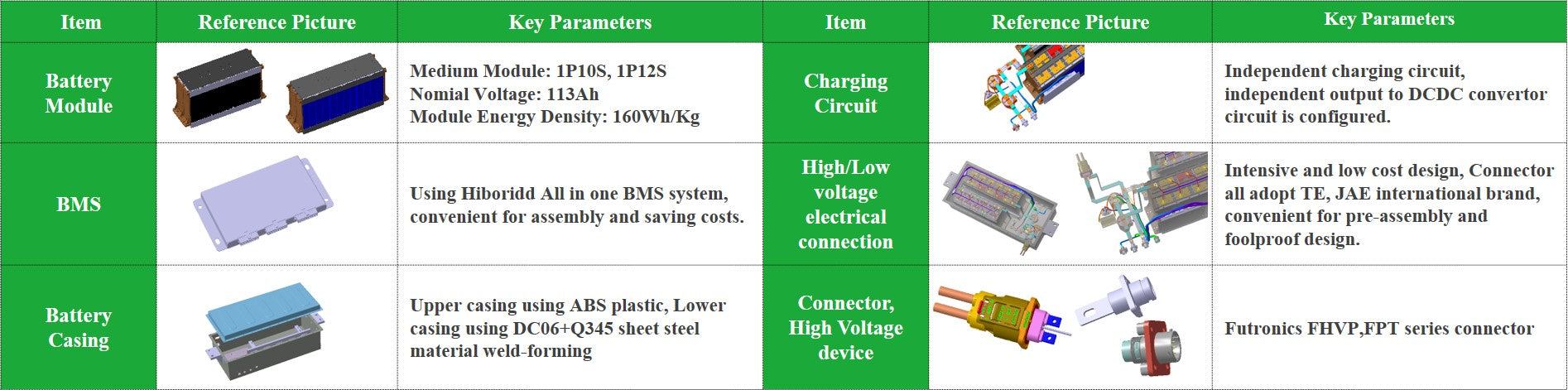

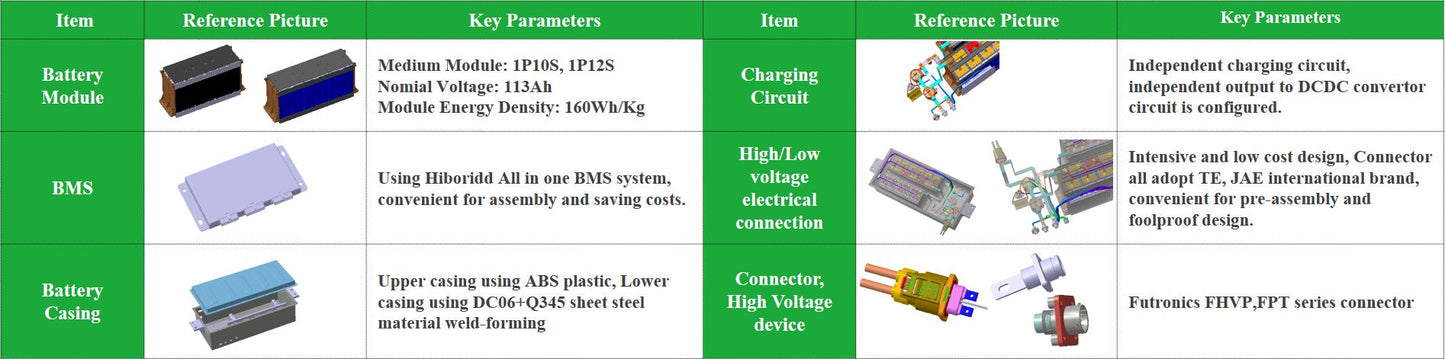

It consists of 1pc 1P10S and 1pc 1P12S medium battery module, makes it be 1P22S.
The battery system is composed of battery modules, BMS, independent charging circuit, high/low voltage harness, etc.
Adopt a natural cooling system between battery modules for heat dissipation.
Upper casing using ABS plastic, Lower casing using DC06+Q345 sheet steel material weld-forming, to ensure the strength and lightweight requirement of the battery casing.
The IP grade of the battery casing meets the requirement of IP67.
Materials and care
Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
