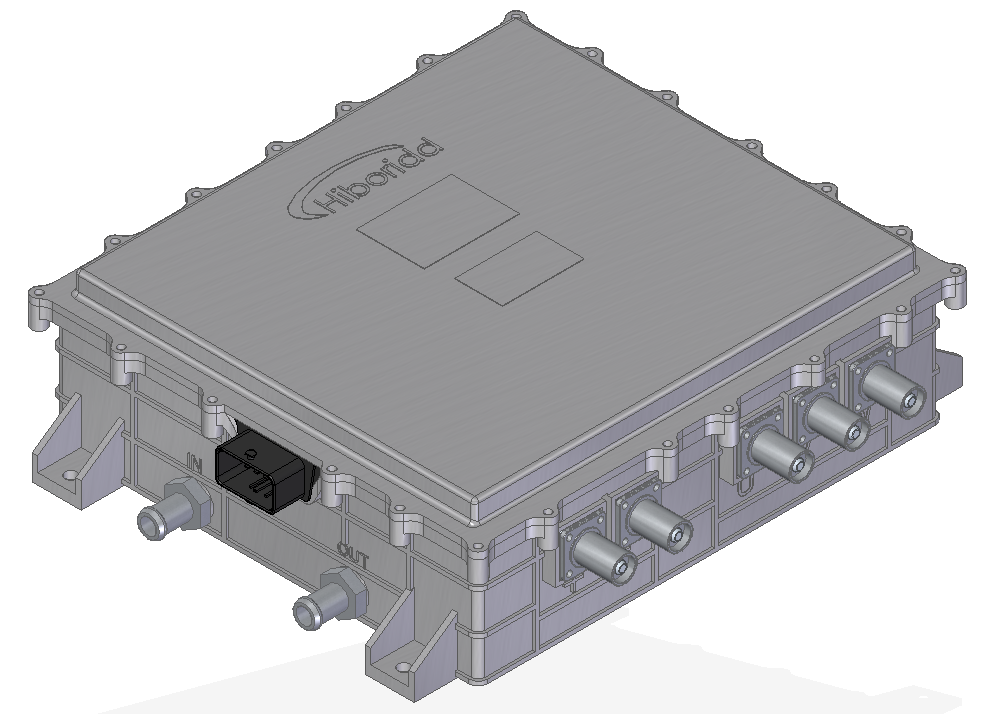

High Voltage MCU Series(80-150KW)

High Voltage MCU Series(80-150KW)

$6,590.00 USD
$6,590.00 USD
Sale Sold out
Nominal Working Voltage: 540VDC
Nominal Power: 150kW
Peak Power: 225kW
Continuous Current: 263Arms
Peak Current: 525Arms@60S
Working Voltage Range: 400~750VDC
Working Ambient Temperature Range:-40~85℃
Cooling Type: Liquid Cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤10kg
Max. Dimension: 406*370*122mm

Materials and care

Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
