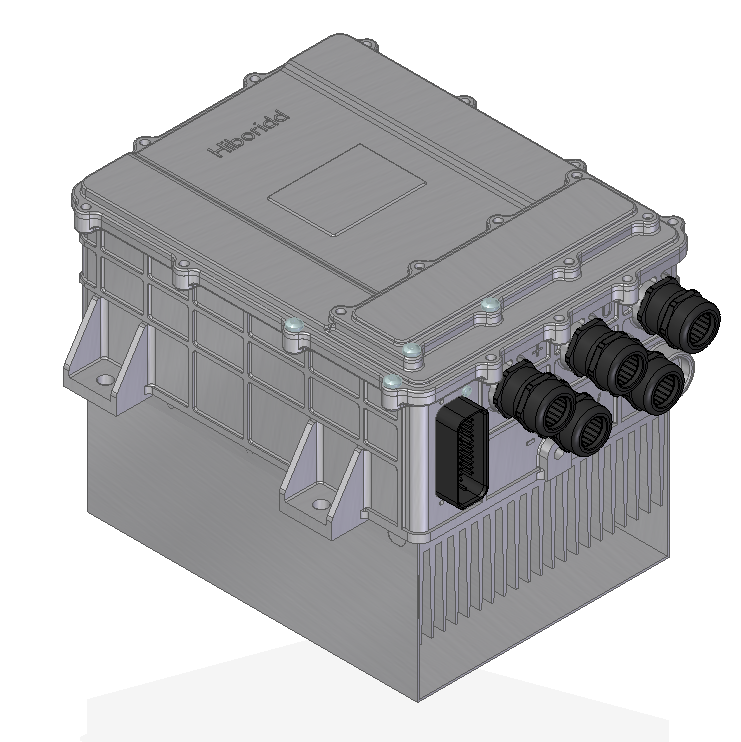

High Voltage MCU series (15KW-20KW)

High Voltage MCU series (15KW-20KW)

$3,840.00 USD
$3,840.00 USD
Sale Sold out
Nominal voltage: 336VDC
Nominal power: 18kW
Peak power: 45kW@30S
Continuous current: 95Arms
Peak current: 220Arms@60s
Voltage range: 240-420VDC
Working ambient Temperature: -40~85℃
Cooling type: Air cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤6.5kg
Max. dimension: 286*254*226mm

Materials and care

Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
