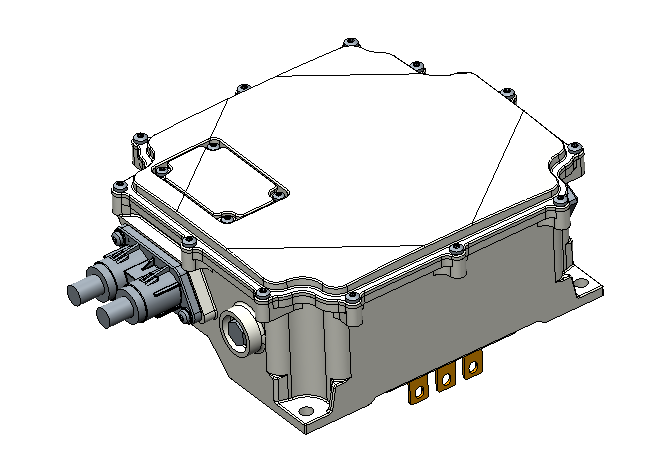

High Voltage MCU series (15KW-25KW)

Nominal voltage: 336VDC
Nominal power: 18kW
Peak power: 35kW
Continuous current: 95Arms
Peak current: 220Arms@60s
Voltage range: 240-420VDC
Working ambient Temperature: -40~85℃
Cooling type: Water cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤10.0kg
2 in 1: electric controler, motor
Max. dimension: 301*244*140mm
