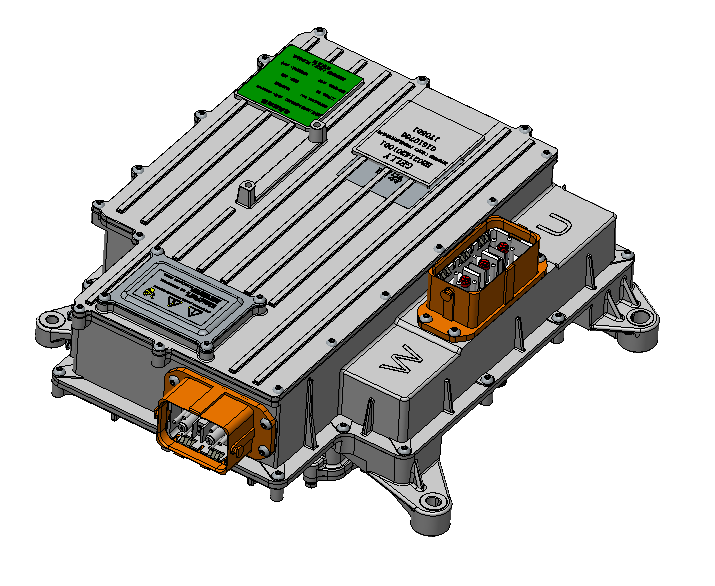

High Voltage MCU Series (15KW-25KW)

Nominal voltage: 312VDC
Nominal power: 22kW
Peak power: 47.2kW
Continuous current: 92Arms
Peak current: 220Arms@60s
Voltage range: 230-372VDC
Working ambient Temperature: -40~85℃
Cooling type: Water cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤13.0kg
2 in 1: electric controler, DCDC, PDU
Max. dimension: 433*377*176mm
