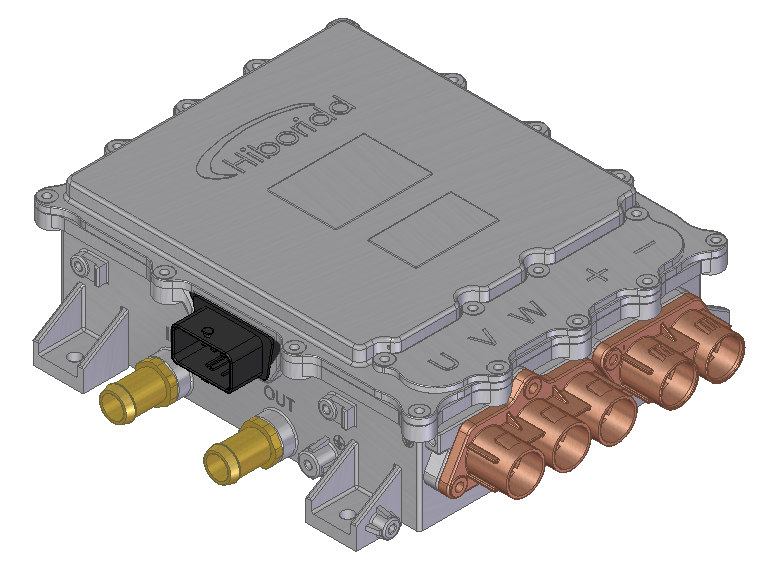

High Voltage MCU series (25KW-50KW)

High Voltage MCU series (25KW-50KW)

$4,830.00 USD
$4,830.00 USD
Sale Sold out
Nominal voltage: 336VDC
Nominal power: 40kW
Peak power: 75kW@30S
Continuous current: 170Arms
Peak current: 350Arms@30s
Voltage range: 240-420VDC
Working ambient Temperature: -40~85℃
Cooling type: Water cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤10.0kg
Max. dimension: 288*268*97mm

Materials and care

Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.

View full details
Variant Variant total Quantity Price Variant total
40kWTBMCUH40K01
40kWTBMCUH40K01
$4,830.00/ea		 $0.00
$4,830.00/ea $0.00
