High Voltage Double MCU Series(45KW-70KW)

High Voltage Double MCU Series(45KW-70KW)

$5,610.00 USD
$5,610.00 USD
Sale Sold out

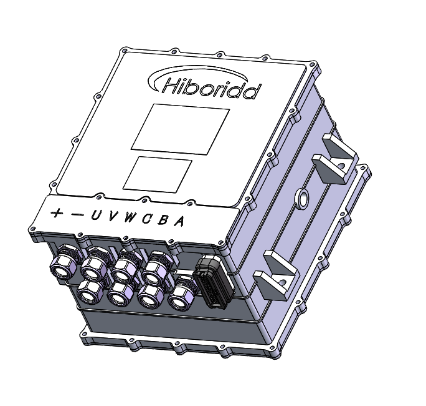

Genertor unit technical parameter:
Nominal power: 50kW
Peak power: 100kW
Continuous current: 180Arms
Peak current: 400Arms
Working ambient Temperature: -40~85℃
Cooling type: Liquid cooling
Max. Efficiency  Point: 98%
IP Grade: IP67
Max. dimension: 300*285*196.5mm

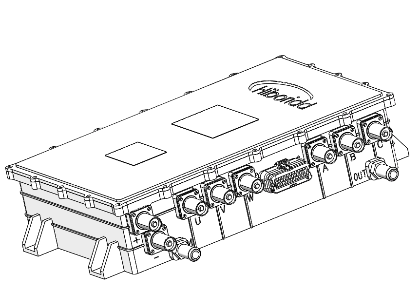

Drive invertor unit technical parameter:
Nominal voltage: 352V
Nominal power: 55kW
Peak power: 110kW
Continuous current: 230Arms
Peak current: 500Arms@30s
Voltage range: 260-410VDC
Working ambient Temperature: -40~85℃
Cooling type: Liquid cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Max. dimension: 460*272*101.5mm

Materials and care

Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
