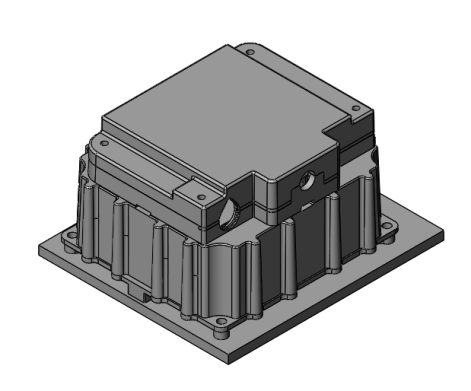

Low Voltage MCU Series (5KW-10KW)

Low Voltage MCU Series (5KW-10KW)

$2,100.00 USD
$2,100.00 USD
Sale Sold out
Nominal voltage: 48VDC
Nominal power: 10kW
Peak power: 20kW
Continuous current: 300Arms
Peak current: 600Arms@30s
Voltage range: 36-56VDC
Working ambient Temperature: -40~85℃
Cooling type: Oil cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤6kg
Max. dimension: 210*190*110mm

Materials and care

Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
