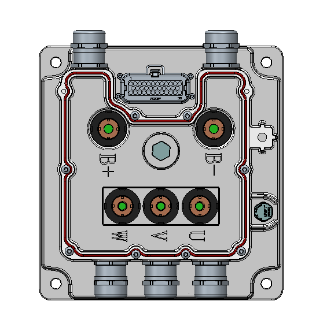

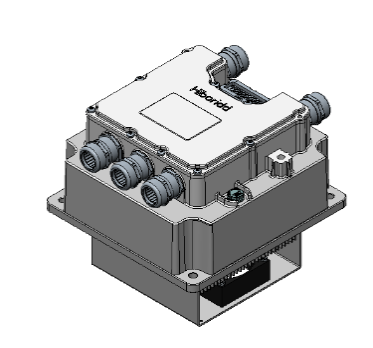

Low Voltage MCU Series (10KW-15KW)

Low Voltage MCU Series (10KW-15KW)

$3,230.00 USD
$3,230.00 USD
Sale Sold out
Nominal voltage: 115-144VDC
Nominal power: 15kW
Peak power: 30kW
Continuous current: 150Arms
Peak current: 400Arms@30s
Voltage range: 90-136VDC
Working ambient Temperature: -40~85℃
Cooling type: Forced air cooling
Max. Efficiency  Point: 98%
Position Sensor Type: Rotary Transformer
IP Grade: IP67
Weight: ≤7kg
Max. dimension: 230*220*205mm

Materials and care

Upgrade to Eco-Friendly Lead-Free Components Meeting ROHS Standards for Industry Sustainability.
