New Energy Cold Chain System

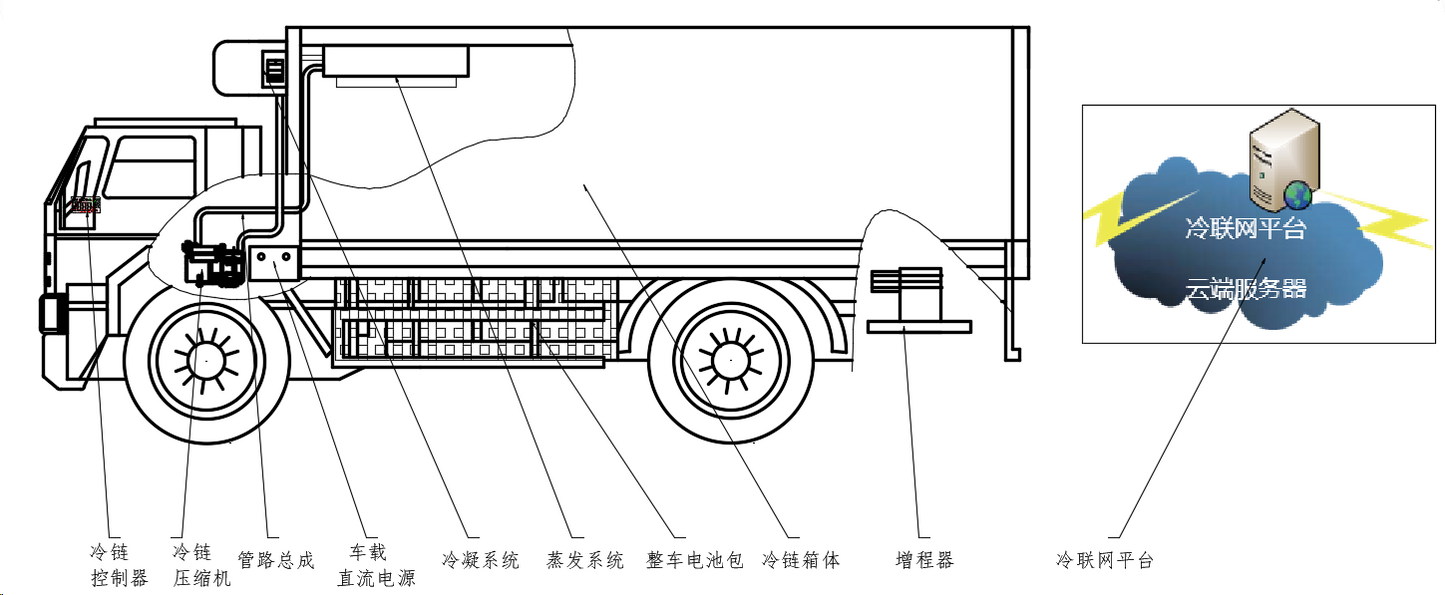

New energy cold chain system consists of cold chain compressor, pipeline assembly, condensation system, evaporation system, vehicle battery system, cold chain box, extended range generator, cold chain control system, T-box, cold chain backstage Management platform, etc.;
1.The cold chain system uses CAN communication with the vehicle and establishes a connection with the cold chain management background through the vehicle T-box；

2.Compressor speed range: 1500~6000rpm
Rated power: 1.5KW
Rated cooling capacity: 4.28KW

3.Condenser with advanced micro-channel and parallel flow structure, high heat dissipation efficiency, heat exchange power greater than 5.5KW

4.Air-cooled finned evaporator specially developed for new energy cold chain, heat exchange power greater than 4.5KW

5.Cold chain management platform, real-time recording, and monitoring of cold chain temperature, vehicle positioning, track playback, and other functions
